    Pico Triple Band Repeater 20dBm 70dB Gain Coverage 1000sqm With LCD Displayer

    Ask Lasest Price
    Brand Name : Lenolink
    Model Number : LSR20-GDW
    Certification : ISO
    Price : Negotiation
    Supply Ability : 1000pcs/month
    • Product Details
    • Company Profile

    Pico Triple Band Repeater 20dBm 70dB Gain Coverage 1000sqm With LCD Displayer

    Pico Triple Band Repeater 20dBm 70dB Gain Coverage 1000sqm with LCD displayer


    Description

    Lenolink provides a series of products to support different applications and customized your requirement. The output power level is 10dBm, 20dBm, 25dBm, 30dBm and 43dBm.


    Consumer Repeater supports any mobile systems to help end users to improve mobile signals for better signal coverage. It is designed to support coverage area from 100 to 8000 sqm with proper engineering. The dual band repeater support two systems in one housing.



    Specification:

    Specifications:
    ParametersUplinkDownlink
    FrequencyGSM&EGSM (Band 8)880 ~ 915MHz925 ~ 960MHz
    DCS (Band 3)1710 ~ 1785MHz1805 ~ 1880MHz
    WCDMA (Band 1)1920 ~ 1980MHz2110 ~ 2170MHz
    Operation Bandwidth (-3dB)Wide Band
    Maximum GainJUP-20-TB≥65dB≥70dB
    Output PowerJUP-20-TB≥15dBm≥20dBm
    MGC (Manual Gain Control)31dB range/1dB step
    AGC (Automatic Gain Control)≧25dB
    Spurious Emission9KHz~1GHz≦ -36dBm
    1GHz~12.75GHz≦ -30dBm
    Noise Figure≤ 6dB
    VSWR≦2.0
    Group Delay≤1μs
    LED AlarmPower LEDDC ON/OFF
    System LEDAlarm Red when ALC control over 15dB
    RF ConnectorN-Female


    Design Advantage
    1. Support wide band to cover all operators.
    2. Manual gain control (MGC) available for both uplink and down link to adjust the gain value for proper coverage during installation or maintenance.
    3. To maintain safe and specific output signal levels and give alarms on self-oscillation, the repeater has built-in AGC and ALC circuits, which can automatically control the gain of the repeater depending upon the strength of input signals.
    4. Optional auto shut off design available for both uplink and downlink to avoid serious interference to network effectively when the repeater is in deep self-oscillation or very strong input power.
    5. Very low power consumption.
    6. Support single, dual, triple and quad systems with one housing.

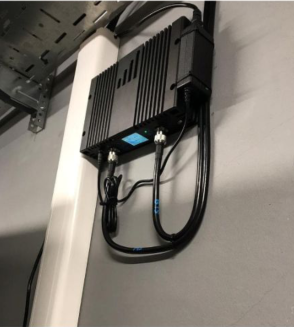

    Installation:



    Our factory:
