698 to 960 MHz/1900-AWS Bands rf diplexer N connector power 500W

RA diplexer is a 3-port device that allows two transmitters or two receivers on different bands to use a common transmit channel. A Diplexer is basically a combiner with a set of low pass and high pass filters with a common feed line. Both the signals should be at different frequencies by a significant percentage, so that filter can easily sort them. It can use low-pass, high-pass or band-pass filters to achieve the desired result. They are ideally used in communications.

Design Advantages

19.00823 a diplexer that combines 698 MHz to 960 MHz frequency bands with the higher 1900-AWS frequency bands. This diplexer is designed to minimize infrastructure capital expenditure and improve network reliability. It can handle an average power of up to 500 watts and 5 kW of peak power with an isolation of over 60 dB between the bands.

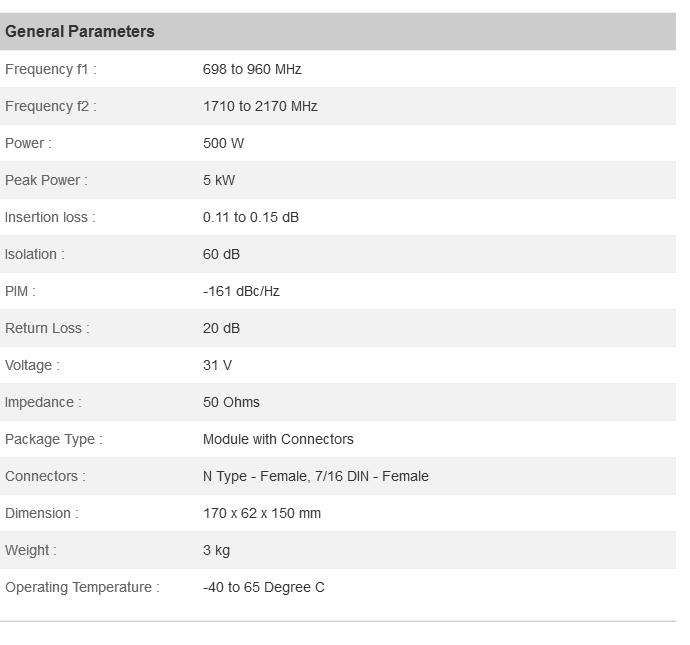

Specification
