| Brand Name : | Lenolink |
| Model Number : | LWO-0740-4 |
| Certification : | ISO |
| Price : | Negotiation |
| Supply Ability : | 10000pcs/month |

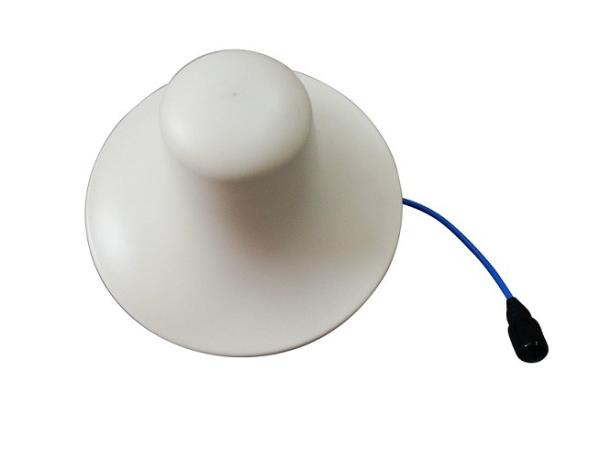

Indoor MIMO OMNI Antenna 698-4000MHz PIM 140dBc
Applications
l Indoor coverage system
l Wireless communication system
l Wireless data transmission
l TDD -LTE
Features
l Low VSWR
l Support current main popular communication system
l ABS Radome
l Easy to install
| ELECTRICAL SPECIFICATIONS | |||
| Frequency (MHz) | 698～960 | 1710～2700 | 3300～4000 |
| Polarization | Vertical | ||
| Gain (dBi) | 2.0±0.5 | 3.5±0.5 | 4.5±0.5 |
| Horizontal Beam Width (°) | 360 | ||
Vertical Beam Width(°) (Typical) | 70 | 35 | 30 |
| VSWR | ≤1.8 | ||
| Impedence (Ω) | 50 | ||
| Power (W) | 50 | ||
| MECHANICAL SPECIFICATIONS | |||
| Connector | N Female | ||
| Dimension | Φ203×115 | ||
| Weight (kg) | 0.4 | ||
| Material | ABS | ||
| Color | White | ||
| Temperature(℃) | -40～60 | ||
| Application | Indoor | ||
