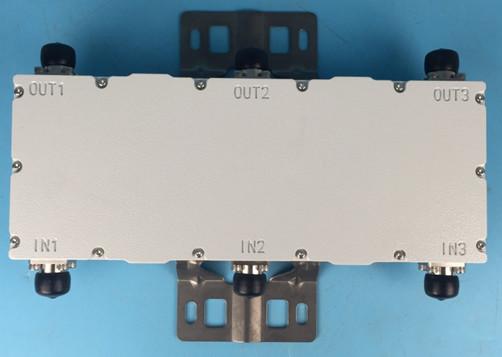

698 - 2700 MHZ RF Switch Matrix IP65 Water Protection isolation 30
Description:
The hybrid combiner is a broadband adder subtractor circuit used to split and combiner RF signals. It is related to the 3 dB hybrid which is based on transmission lines and is most commonly used in high power broadband applications.
Design Advantages:
• Integrated structure design.
• Lower PIM, lower insertion loss, higher isolation, and higher
power handing capacity.
• Mounting hardware for Wall and Pole mount provided.
• Compact design, easy installation.
• Lifetime warranty
Specification:
| Type No | 95.00093 |
| Electrical | |
| Input Ports | 3 |
| Output Ports | 3 |
| Frequency (MHz) | 698-2700 |
| Insertion Loss (dB) | ≤ 5.8 |
| Isolation (dB) | ≥ 30 |
| VSWR | ≤ 1.25:1 |
| Impedance | 50 Ω |
| Input Power (c.w./per port) | ≤ 300 Watts |
| Intermodulation Products | ≤ -160 dBc (3rd order with 2×20W) |
| Environmental | |
| Temperature Range | -20 to +55°C (Operating) |
| Humidity | 95% max, non condensing |
| Application | IP65 |
| Mechanical | |
| Connectors | 4.3-10 Female or 7/16DIN(F) |
| Colors | Grey, RAL 7035 (powdering) |
| Weight | ≤ 2.2 kg |
Dimensions (without connectors and brackets) | 300*120*37 mm |
| Packing (with bracket) | 1 pc/box |
